jlg

400s Straight boom

JLG 400S

Stanmore Equipment is an authorized JLG dealership. JLG® engine powered telescopic boom lifts are ideal for work that requires extended horizontal and vertical outreach. JLG telescopic lifts take you right where you need to work while providing you with the height and capacity you need.

Contact us at 1-855-955-LIFT (5438)  or send us an email to sales@stanmoreequipment.com

Features

  • Improved multifunction capability increases productivity
  • More durability and serviceability thanks to the new DuraTough hood design
  • Larger capacity of 600 lb

Highlights

Platform Height
Unrestricted Platform Capacity
Restricted Platform Capacity
Horizontal Outreach

40 ft / 12.19 m
1000 lb / 453.59 kg
600 lb / 272.16 kg
33 ft / 10.06 m

Specifications

Performance

Drive Speed - 4WD
Gradeability - 4WD
Platform Capacity - Restricted
Platform Capacity - Unrestricted
Swing
Swing Type
Turning Radius - Outside
Horizontal Jib Rotation
Horizontal Outreach
Platform Height
Capacity - Hydraulic Reservoir
Maximum Ground Bearing Pressure
Machine Weight

4.5 mph / 7.24 km/h
45 %
1000 lb / 453.59 kg
600 lb / 272.16 kg
360 Degrees
Continuous
15 ft 11 in. / 4.84 m
0 Degrees
33 ft 3 in. / 10.13 m
40 ft / 12.19 m
36 gal. / 136.27 L
60 psi / 4.20 Kg/cm2

13640 lb / 6187 kg

Download Brochure

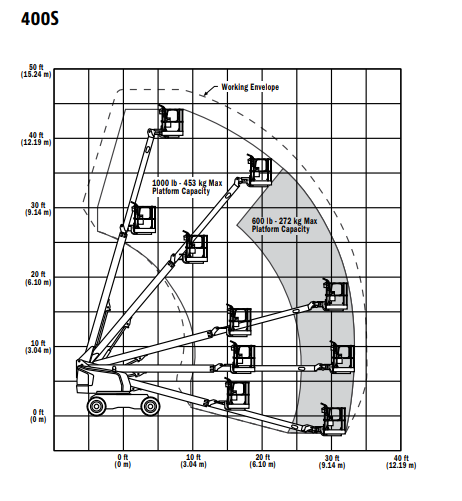

Reach Diagram
