EQUIPMENT
Stanmore Equipment is an authorized JLG dealership. JLG® engine powered telescopic boom lifts are ideal for work that requires extended horizontal and vertical outreach. JLG telescopic lifts take you right where you need to work while providing you with the height and capacity you need.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com

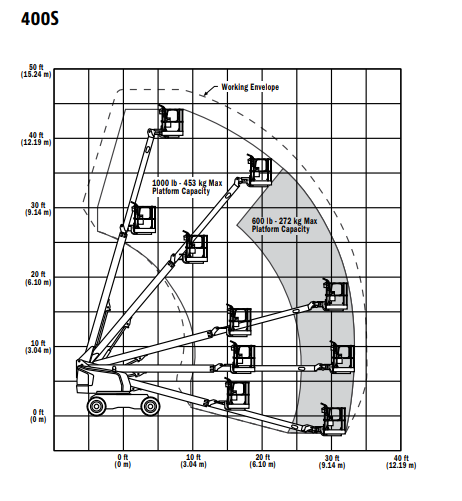

Platform HeightUnrestricted Platform Capacity Restricted Platform CapacityHorizontal Outreach
40 ft / 12.19 m1000 lb / 453.59 kg600 lb / 272.16 kg33 ft / 10.06 m
Drive Speed - 4WD Gradeability - 4WD Platform Capacity - Restricted Platform Capacity - Unrestricted Swing Swing Type Turning Radius - Outside Horizontal Jib Rotation Horizontal Outreach Platform Height Capacity - Hydraulic Reservoir Maximum Ground Bearing Pressure Machine Weight
4.5 mph / 7.24 km/h 45 % 1000 lb / 453.59 kg 600 lb / 272.16 kg 360 Degrees Continuous 15 ft 11 in. / 4.84 m 0 Degrees 33 ft 3 in. / 10.13 m 40 ft / 12.19 m 36 gal. / 136.27 L 60 psi / 4.20 Kg/cm2 13640 lb / 6187 kg
