JLG TELESCOPIC BOOM

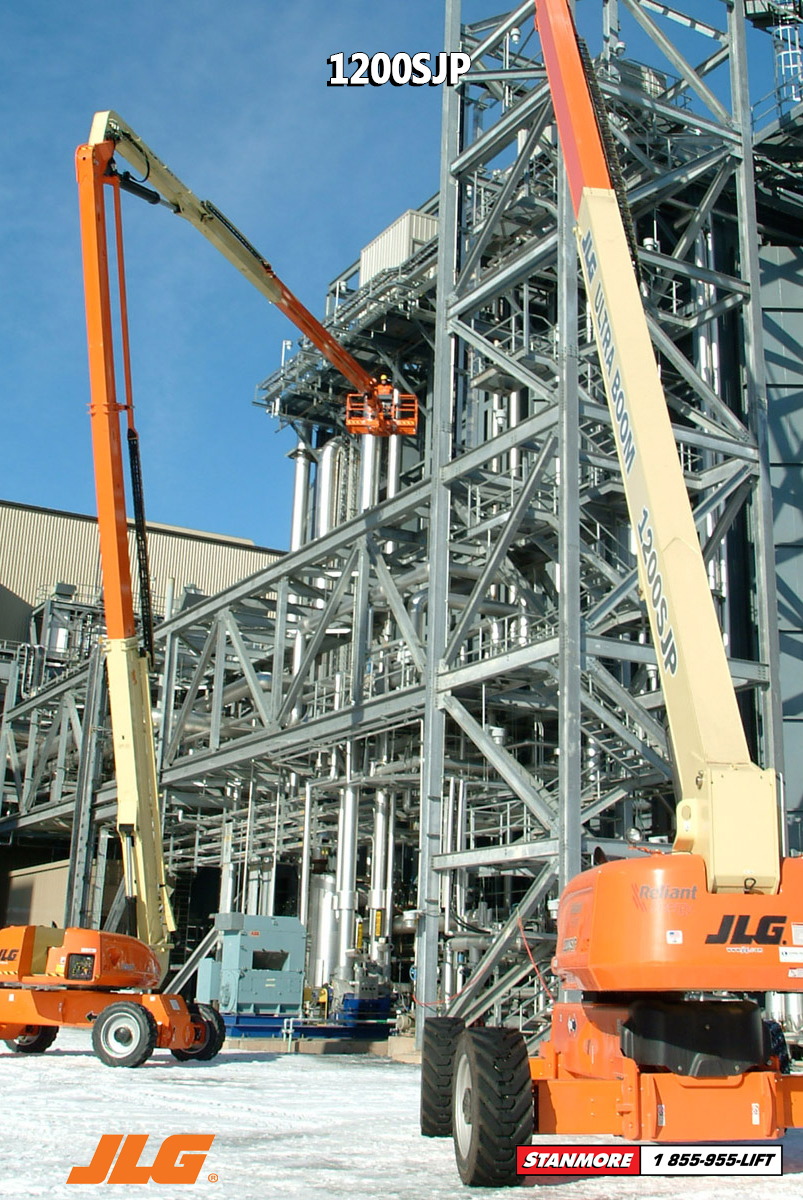

JLG 1200SJP
Stanmore Equipment is an authorized JLG dealership. JLG® engine powered telescopic boom lifts are ideal for work that requires extended horizontal and vertical outreach. JLG telescopic lifts take you right where you need to work while providing you with the height and capacity you need.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com

Features
- Ground to 120 ft up in 95 seconds
- Stability and capacity from 100,000-psi steel and a dual 1,000 / 500 lb capacity
- Equipped with a fuel-efficient Tier 4 engine
Highlights
Platform Height
Unrestricted Platform Capacity
Restricted Platform Capacity
Horizontal Outreach
120 ft / 36.58 m
500 lb / 226.80 kg
1000 lb / 453.59 kg
71 ft / 21.64 m
Specifications
Performance
Drive Speed
Gradeability - 4WD
Platform Capacity - Restricted
Platform Capacity - Unrestricted
Swing
Swing Type
Turning Radius
- Inside
- Outside
Horizontal Outreach
Platform Height
Maximum Ground Bearing Pressure
Machine Weight
3.25 mph (5.2 km/h)
45 %
1,000 lb 454 kg
500 lb 227 kg
360 Degrees
Continuous
14 ft 5 in. (4.39 m)
22 ft 6 in. (6.86 m)
71 ft 21.64 m
63 ft 2 in. (19.25 m)
99 psi (7.0 kg/cm2 )
40,900 lb (18,552 kg)
Reach Diagram
