Load Lifter's 4400
Load Lifter's 4400 Series
The 4400 series continues to be a machine that can be used in the worst conditions and provides reliable performance. Utilizing four equal wheels, and having full-time four-wheel drive, the 4400 series is found on all types of construction sites, lumber applications, military bases, mine sites, and government utility operations.
The F-Series models offer the widest range of capacities which includes our newest F-Series 10-16,000 lbs. capacity. Our 2 newest models also include the 4400-25F with 25,000 lbs. capacity and the 4400-30F with 30,000 lbs. capacity.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com

Features
- Full time four wheel drive
- Large operators compartment
- High visibility operator seating position
- Convenient ergonomic controls
- Large equal wheels for excellent tractive effort and floatation
- High strength rigid welded frame assembly [No articulation]
- Componentized power train
- 99 ~ 225 Hp diesel engines available [Depending on capacity range]
- Large outboard planetary drive axles
- Full power oil immersed disc brakes
- Three steering modes [All wheel, Rear wheels only, Crab]
- Standard full power shift transmissions
- Finger tip steering even at low engine idle
- Very tight turn radius
- 5,000 ~ 30,000 LBS capacity available
- Five different chassis configurations
- Full range of C-Thru masts
- Roomy well equipped optional Cab assembly
Available Capacities
Please choose your weight class below...
Specifications
10 - 16,000 lb Capacities
Aprox. Machine Weights
10,000 LB - 8,596 Kg (18,950 lbs)
12,000 LB - 9,253 Kg (20,400 lbs)
14,000 LB - 10,228 Kg (22,550 lbs)
16,000 LB - 11,090 Kg (24,450 lbs)

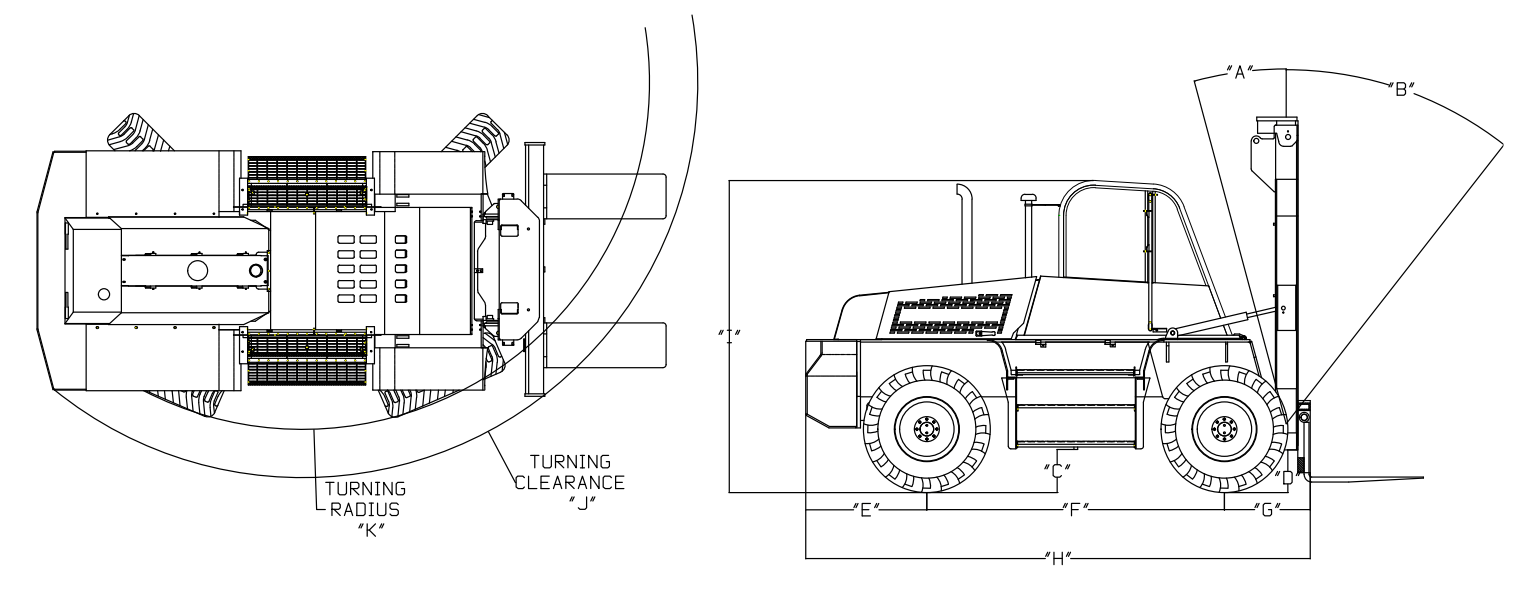

Machine Dimensions
Machine Dimensions
A (Tilt Back) 14°
B (Tilt Forward) 24°
C (Machine Ground Clearance) 13"
D (Mast Ground Clearance) 14"
E (Counterweight Overhang) 47"
F (Wheelbase) 100"
G (C\L Drive Axle to Face of Forks) 36"
H (Overall Length to Face of Forks) 181"
I (Overall Height Top of Canopy) 107"
J (Turning Clearance)
186"
K (Turning Radius) 174"
L (Overall Width) 96"


Back to top


Back to top
18,000 - 20,000 lb Capacities
Aprox. Machine Weights
18,000 LB - 14,969 Kg (33,000 lbs)
20,000 LB - 15,818 Kg (34,800 lbs)
Machine Dimensions
A (Tilt Back) 14°
B (Tilt Forward) 18°
C (Machine Ground Clearance) 15"
D (Mast Ground Clearance) 14"
E (Counterweight Overhang)
49"
F (Wheelbase) 125"
G (C\L Drive Axle to Face of Forks) 40 5/8"
H (Overall Length to Face of Forks) 209"
I (Overall Height Top of Canopy)
124"
J (Turning Clearance) 212"
K (Turning Radius) 192 1/2"
L (Overall Width)102"
25,000 lb Capacity
Aprox. Machine Weights
25,000lb 19,822kg. (43,700 lbs)
Machine Dimensions
Machine Dimensions
A (Tilt Back) 14°
B (Tilt Forward) 18°
C (Machine Ground Clearance) 16 3/4"
D (Mast Ground Clearance) 13 1/2"
E (Counterweight Overhang) 59 5/8"
F (Wheelbase) 135"
G (C\L Drive Axle to Face of Forks) 47 7/8"
H (Overall Length to Face of Forks) 242 3/4"
I (Overall Height Top of Canopy) 134 1/2"
J (Turning
Clearance) 256"
K (Turning Radius) 244"
L (Overall Width) 98"


Back to top


Back to top
30,000 lb Capacities
Aprox. Machine Weights
24,091 kg. (53,000 lbs)
Machine Dimensions
A (Tilt Back) 14°
B (Tilt Forward) 18°
C (Machine Ground Clearance) 17"
D (Mast Ground Clearance) 11 1/2"
E (Counterweight
Overhang) 70"
F (Wheelbase) 155"
G (C\L Drive Axle to Face of Forks) 54"
H (Overall Length to Face of Forks) 280"
I (Overall Height
Top of Canopy) 138"
J (Turning Clearance) 261"
K (Turning Radius) 247"
L (Overall Width)110"
