Stanmore Equipment is Ontario's exclusive Magni dealer providing sales, service, and rentals. The RTH 7.26 is a tough, high-performance rotating telescopic handler. It can lift loads to a height of 26 m and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Features

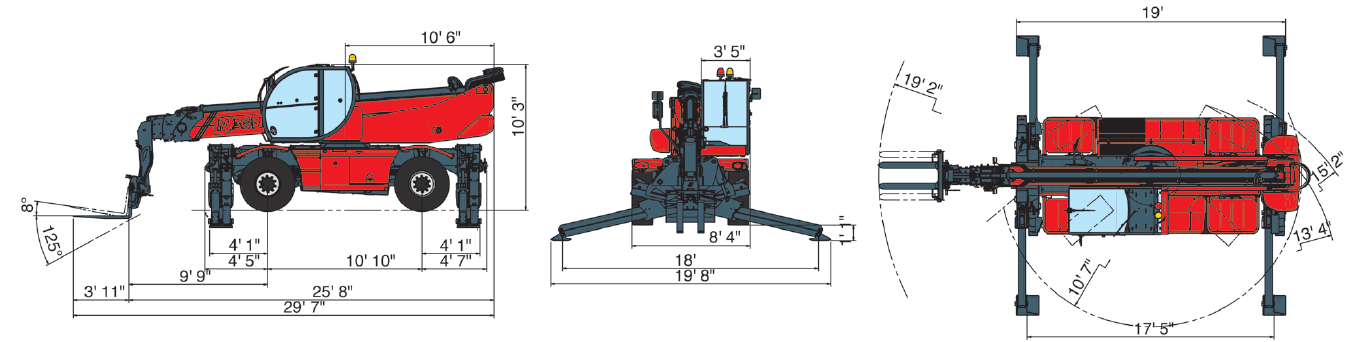

Stabilizers: scissorLifting capacity: 15,400 lbCapacity at maximum height: 7,050 lbLifting height: 84 ft Outreach: 72.2 ftEngine: Volvo TAD 572 VE - Tier 4fNominal power: 160 kw (218 Hp) @ 2.300 rpmNumber of gears: 2/2Hydraulic system: Load Sensing 350 barLength: 25' 8''Width: 8' 4''Ground Clearance: 12.6 InEmpty weight: 45.635 lbSpeed of movement: 25.48 MphRotation: 360°Air conditioning as standard: YesAutomatic accessory recognition: Yes
Highlights
Maximum lifting height: 84.3 ft Maximum reach: 72.2 ft Electronically controlled hydro-static transmission Automatic leveling device Scissors stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°15,400 lbs84.3 ft7,050 lbs72.2 ft2,200 lbs66 kph203.4 in44,205 lbs

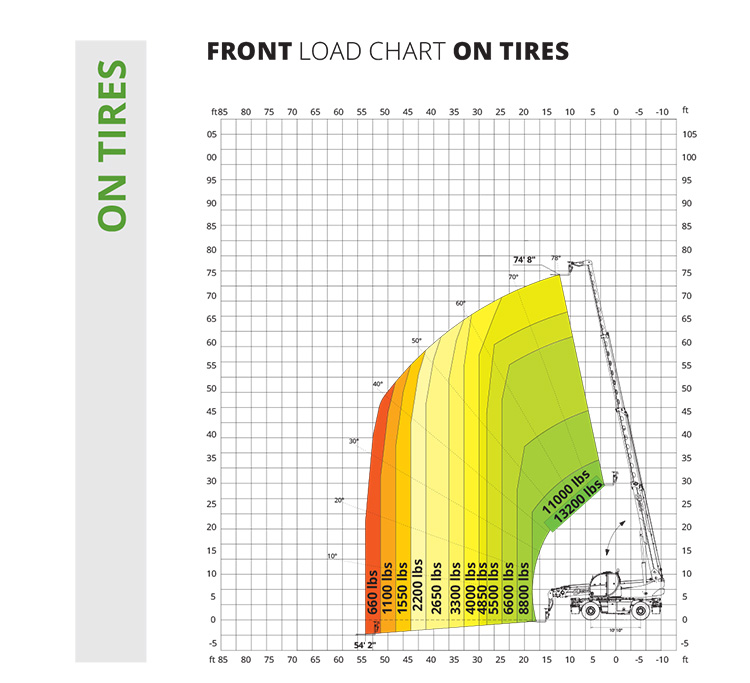

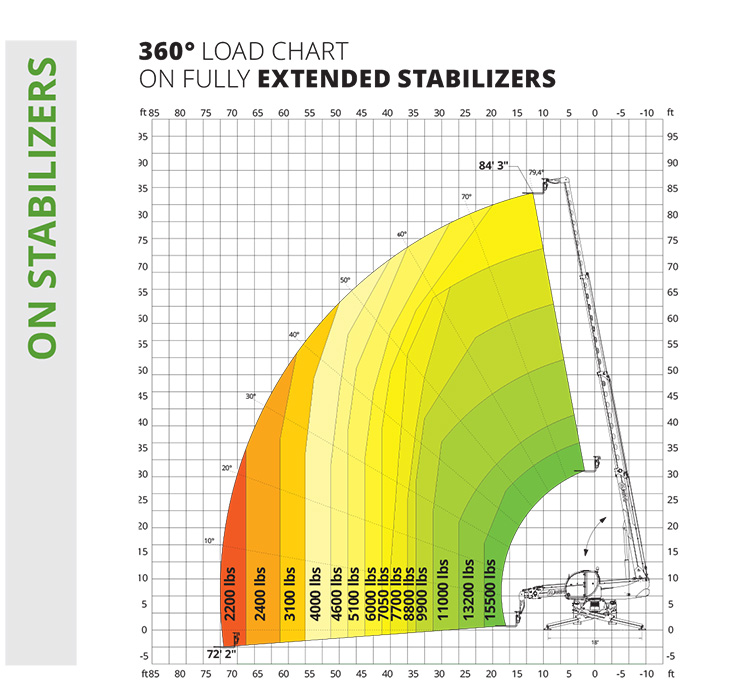

Click to enlarge the image
