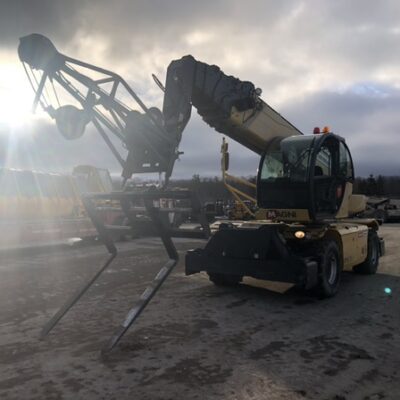

Stanmore Equipment is Ontario's exclusive Magni dealer providing sales, service, and rentals. The RTH 6.46 SH is the highest rotating telescopic handler in the world. It achieves a lifting height of 46 m, with a maximum load capacity of 6 tonnes. It is the perfect solution for all construction or industrial sites requiring best-in-class reach and lifting capacities. The inclination corrector and scissor stabilizers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all-terrain to ensure maximum operator safety. The dual-extension scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. This model allows the same attachment to be used in two different ways: strength mode M2 and stability mode M1. The first allows very heavy loads to be lifted, but with a more limited extension. The second mode, on the other hand, allows for greater extension, but with more limited loads. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the dynamic load charts; this telescopic handler can meet a wide range of applications in construction and industry.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Stabilizers: scissorLifting capacity: 13,227.74 lbCapacity at maximum height: 5,500 lbLifting height: 149.6 ftOutreach: 105 ftEngine: Mercedes OM 934 LA Stage IVNominal power: 170 kW - 231 hpNumber of gears: 2/2Hydraulic system: Load Sensing 350 barLength: 344.49 InWidth: 98.43 InGround Clearance: 15.35 InEmpty weight: 6,6138.68 lbSpeed of movement: 24.85 MphRotation: 360°Air conditioning as standard: YesAutomatic accessory recognition: Yes
Maximum lifting height: 149.6 ft Maximum reach: 105 ft Electronically controlled hydro-static transmission Automatic leveling device Scissor stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°13,227 lbs149.6 ft5,500 lbs105 ft440 lbs66 kph303.5 ft67,240 lbs
