Stanmore Equipment is Ontario's exclusive Magni dealer providing sales, service, and rentals. The RTH 6.39 SH is a rotating telescopic handler designed for use with heavy and bulky loads. Its 39 m lifting height makes it extraordinarily effective on construction or industrial sites requiring high reach and lifting capacities. The inclination corrector and scissor stabilizers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all-terrain to ensure maximum operator safety. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Stabilizers: scissor Lifting capacity: 13,227.74 lbCapacity at maximum height: 6,600 lbLifting height: 114.49 ftOutreach: 88.5 ftEngine: Mercedes OM 934 LA Stage IVNominal power: 170 kW - 231 hpNumber of gears: 2/2Hydraulic system: Load Sensing 350 barLength: 314.96 inWidth: 98.43 inGround Clearance: 12.60 inEmpty weight: 52,624.34 lbSpeed of movement: 24.85 MphRotation: 360°Air conditioning as standard: YesAutomatic accessory recognition: Yes
Maximum lifting height: 114.49 ft Maximum reach: 88.5 ft Electronically controlled hydro-static transmission Automatic leveling device Scissors stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°13,227 lbs114.49 ft6,600 lbs88.5 ft880 lbs66 kph275.6 in52,625 lbs

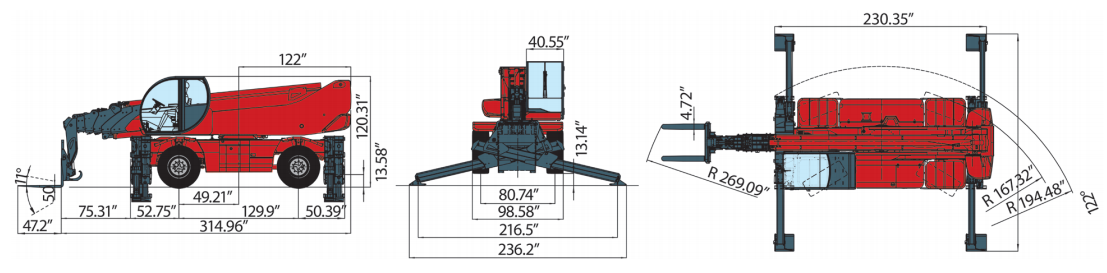

Click to enlarge the image
