The RTH 6.25 is a simple yet high-performance rotating telescopic handler. It can lift loads to a height of 82 ft and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they are able to work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Stabilizers: scissorLifting capacity: 13,200 lbCapacity at maximum height: 4,850 lbLifting height: 82 ft Outreach: 69' 10" ftEngine: Deutz TCD 3,6 L4 Tier 4fNominal power: 100 kW (134 HP) @ 2,200 rpmNumber of gears: 2/2Hydraulic system: Load Sensing 350 barLength: 25'Width: 16' 9"Ground Clearance: 12.72 InEmpty weight: 39,680 lbSpeed of movement: 25.48 MphRotation: 360°Air conditioning as standard: YesAutomatic accessory recognition: Yes
Maximum lifting height: 82' Maximum reach: 69' 10" Electronically controlled hydrostatic transmission Automatic leveling device Scissors stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°13,200 lbs82 ft4,850 lbs69' 10"1,300 lbs25 mph251 in39680 lbs

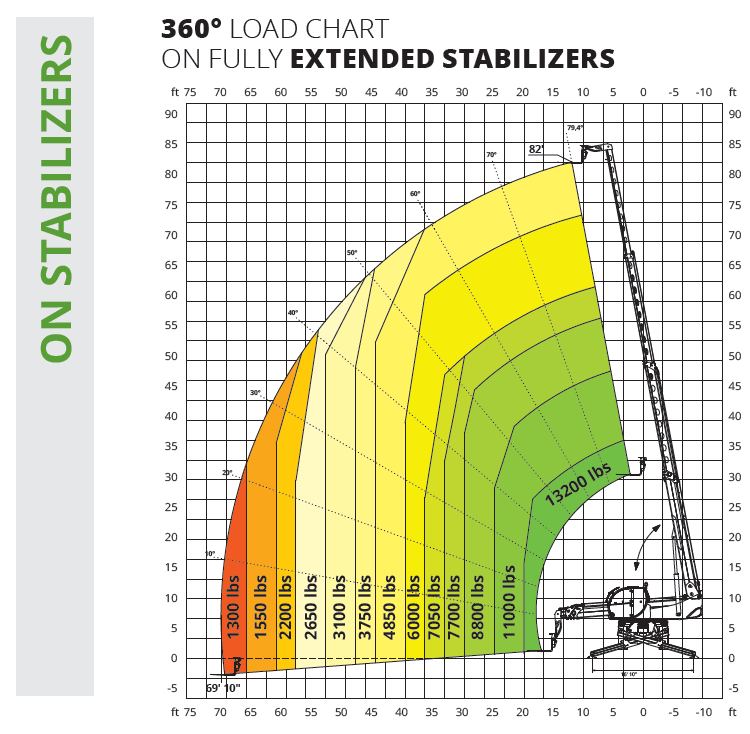

Click to enlarge the image
