Stanmore Equipment is the exclusive Magni Dealership in Ontario. The RTH 5.25 Smart is a high-performance rotating telescopic handler capable of lifting loads to 25m high. The 5.25 Smart series comes equipped with pivoting stabilizers that can help guarantee stability and safety during all maneuvers. It also offers a huge range of accessories, thanks to the RFID system which provides automatic recognition and creation of the relative load charts.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Stabilizers: pivotingLifting capacity: 11,020.91 lbCapacity at maximum height: 4,400 lbLifting height: 81 ft Outreach: 62.33 ftEngine: Deutz TCD 3.6 L4 - stage IVNominal power: 100 kW - 136 hpNumber of gears: 2/2Hydraulic system: Load Sensing 350 barLength: 300 InWidth: 98.43 InGround clearance: 12.95 InEmpty weight: 37,985.65 lbSpeed of movement: 24.86 Mph Rotation: 360°Air conditioning as standard: YesAutomatic accessory recognition: Yes
Maximum lifting height: 81 ft Maximum reach: 62.33 ft Electronically controlled hydrostatic transmission Automatic leveling device Pivoting stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°11,020 lbs81 ft4,400 lbs62 ft440 lbs66 kph252.4 in37,985 lbs

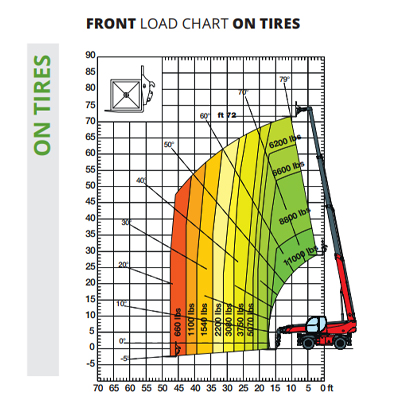

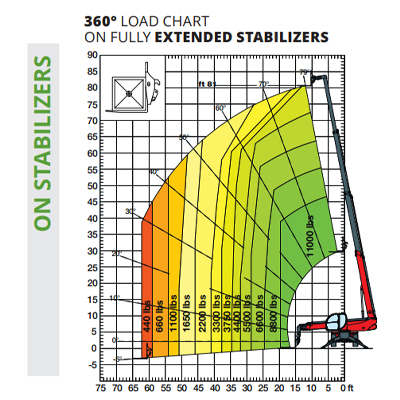

Click to enlarge the image
