Stanmore Equipment is the exclusive Magni Dealership in Ontario. The RTH 5.21 Smart is a simple yet high-performance rotating telescopic handler. It can lift loads to a height of 21m and is equipped with pivoting stabilizers to guarantee stability and safety during all operational maneuvers. The RTH 5.21 also comes with a safe load indicator and will alert the driver to prevent a risk of overloading the machine, and an RFID system allowing for automatic recognition of attachments and creation of the corresponding load charts.
Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com
Stabilizers: pivotingLifting capacity: 11.020,91 lbCapacity at maximum height: 5,511.566 lbLifting height: 67.91 ftOutreach: 58.0 ftEngine: Deutz TCD 3.6 L4 - stage IVNominal power: 100 kW - 136 hpNumber of gears: '2/2Hydraulic system: Load Sensing 350 barLength: 258.66 InWidth: 98.43 InGround Clearance: 12.95 In Empty weight: 36,376.27 lbSpeed of movement: 24.86 MphRotation: 360 °Air conditioning as standard: YesAutomatic accessory recognition: Yes
Maximum lifting height: 67.91 ft Maximum reach: 58.0 ft Electronically controlled hydro-static transmission Automatic leveling device Pivoting stabilizers
RotationRated CapacityMaximum Lift HeightLoad at Max HeightMaximum Forward ReachLoad at Max ReachTop Travel Speed (4 Speed)Outside Turning RadiusOperating Weight
360°11,020 lbs67.91 ft5,510 lbs58 ft880 lbs66 kph227.5 in36,380 lbs

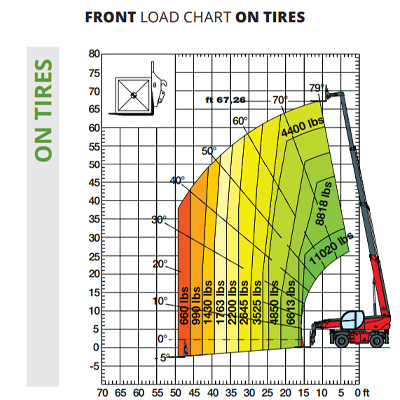

Click to enlarge the image
