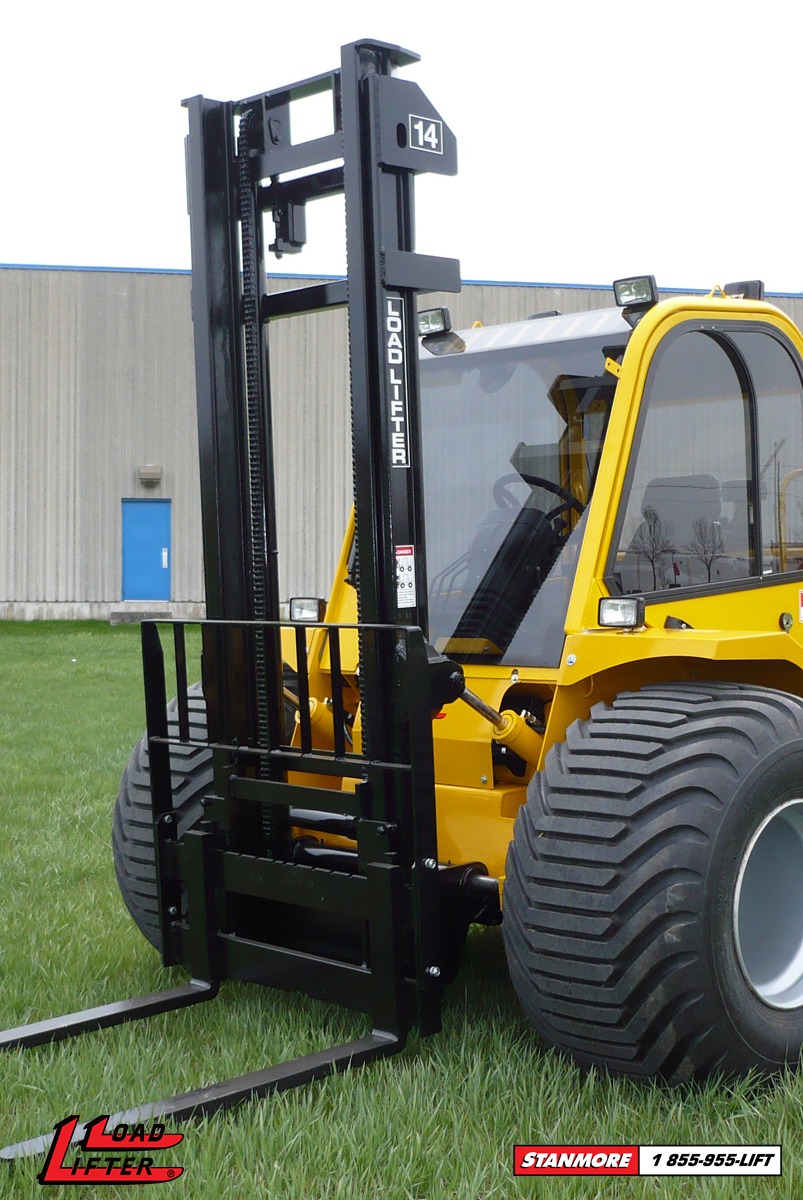

Load Lifter's Agri Lifter Series

The Agri Lifter is a light, agile forklift that offers high performance in Turf / Sod applications as well as other industries where 4,000 to 5,000 lb. capacities are required. This machine has a great ability to displace its weight, giving low ground pressure. Adding an array of available flotation tires allows for superior performance in field applications with damage-free turf.

Contact us at 1-855-955-LIFT (5438)  or send us an email to


  • Primarily designed for the turf industry
  • 4,000 ~ 5,000 LBS. capacity
  • Roomy operators compartment
  • Low machine weight to reduce ground pressure
  • Fully componentized power train
  • Hydraulically applied oil immersed disc brakes
  • Limited slip differential
  • High ground clearance
  • Fast agile performance
  • Available slider and C-Thru roller masts
  • Heavy duty steer axle
  • Perkins 1104D-44T Turbo Diesel Engine
  • Superior powder coat finish
  • Full range of floatation tires available
  • Hydraulic big roll carriage available
  • Good choice for pallet manufactures or recycling applications


Ground clearance
Length to face of forks
Height to top of canopy
Turn radius
Max Capacities
Lift Heights

2WD 168" 4 WD 179"
4-5,000 lbs
14 foot C-Thru Mast


Weights & Dimensions

Aprox. Machine Weight

4,000 lb - 4808 kg (10,600 lbs)
5,000 lb - 5058 kg (11,150 lbs)

Machine Dimensions

A (Tilt Back) 14˚
B (Tilt Forward) 24˚
C (Machine Ground Clearance) 15"
D (Mast Ground Clearance) 12"
E (Counterweight Overhang) 253 /4"
F (Wheelbase) 83"
G (C/L Drive Axle to Face of Forks) 343 /16"
H (Overall Length to Face of Forks) 143"
I (Overall Height Top of Canopy) 97"
J (Turning Clearance) 2WD 168", 4WD 179"
K (Turning Radius) 2WD 164", 4WD 175"
L (Overall Width) 84"
