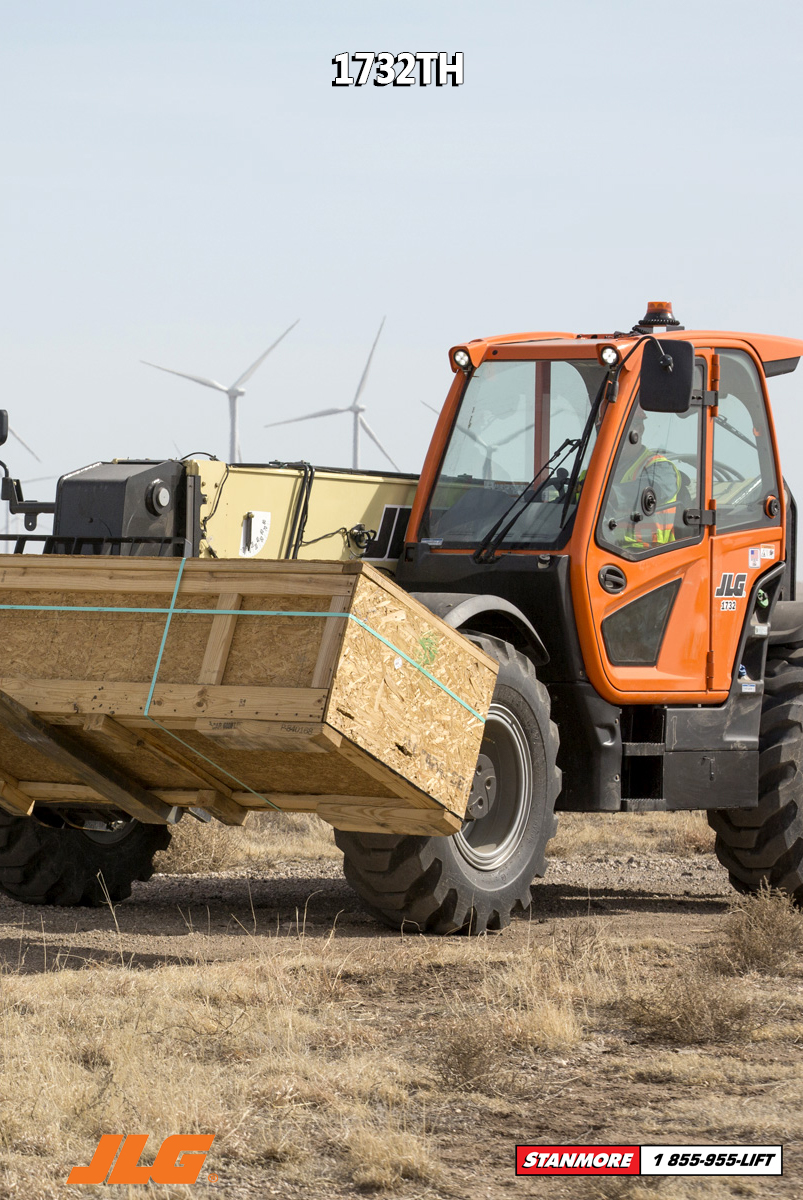

JLG 1732TH

Stanmore Equipment is a supplier of JLG telehandlers. With JLG® telehandlers you get the best-in-class cabs offering enhanced visibility, a wide range of attachments allowing for versatility on the job site. Tier 4 Final engines are fuel-efficient with less environmental impact.

Contact us at 1-855-955-LIFT (5438)  or send us an email to sales@stanmoreequipment.com

Features

  • Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
  • Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
  • Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
  • SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity

Highlights

Maximum Lift Capacity: 16755 lb / 7599.94 kg
Maximum Lift Height: 31 ft 8 in. / 9.65 m
Maximum Reach: 18 ft 7 in. / 5.66 m

Specifications

Performance

Drawbar Pull
Frame Leveling
Lift Capacity at Full Height
Lift Capacity at Max Reach
Load Center
Maximum Lift Capacity
Maximum Lift Height
Maximum Reach
Outriggers or Stabilizers
Outside Turning Radius

23000 lb / 10432.62 kg
8 degrees
9900 lb / 4490.56 kg
5500 lb / 2494.76 kg
             2 ft / 0.61 m
    16755 lb / 7599.94 kg
31 ft 8 in. / 9.65 m
18 ft 7 in. / 5.66 m
NO
13 ft 2 in. / 4.01 m

Download Brochure

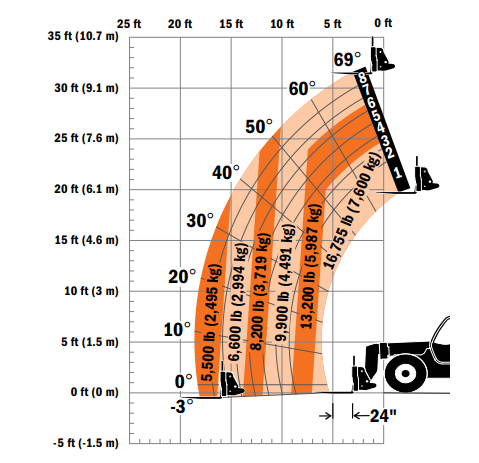

Load Chart
