jlg 1250ajp

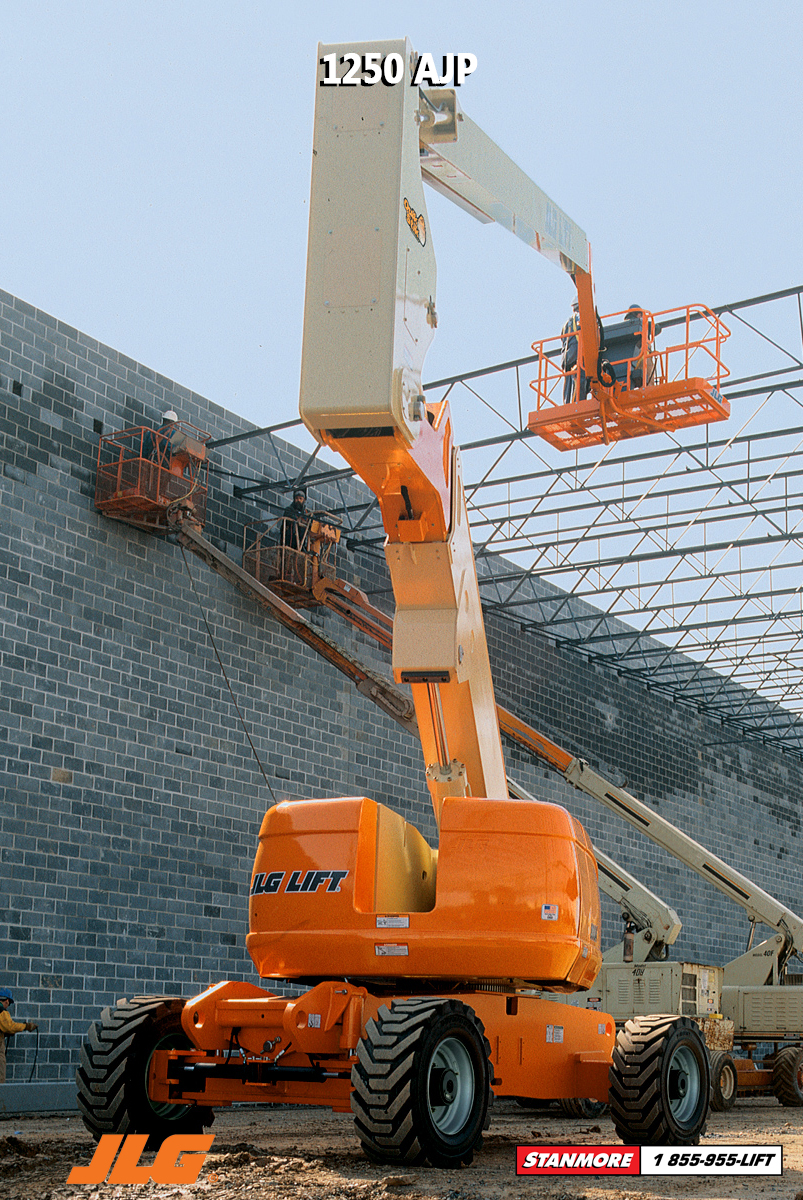

JLG 1250AJP

Stanmore Equipment is an authorized JLG dealership. JLG® engine powered articulating boom lifts give you the extra reach you need to work over and around obstacles on the job site. Offering exceptional outreach, high capacity, versatile performance, and easy maintenance. An articulating lift provides you with access to those hard-to-reach places.

Contact us at 1-855-955-LIFT (5438)  or send us an email to sales@stanmoreequipment.com

Features

  • Ground to 120 ft in 95 seconds
  • Strong 100,000-psi steel and a dual 1,000 lb / 500 lb capacity give you stability and capacity
  • Equipped with a fuel-efficient Tier 4 engine

Highlights

Platform Height
Restricted Platform Capacity
Unrestricted Platform Capacity
Outreach

125 ft - 38.1 m
1000 lb - 453.59 kg
500 lb - 226.80
63 ft - 19.25 m

Specifications

Performance

Platform Height
Horizontal Outreach
Up and Over Height
Swing
Platform Capacity
- Restricted
- Unrestricted
Platform Size
Platform Rotator
Jib PLUS
Horizontal Motion
Weight
Ground Pressure
Drive Speed
Gradeability
Turning Radius - Inside
Axles Retracted
Axles Extended
Turning Radius - Outside
Axles Retracted
Axles Extended

125 ft - 38.1 m
63 ft - 19.25 m
60 ft - 18.44 m
360 Degrees Continuous

1000 lb - 450 kg
500 lb - 227 kg
30 x 72 in. - 0.76 x 1.83 m
180 Degrees Hydraulic
8 ft - 2.44 m
125 degrees
44,000 lb - 19,958 kg
100 psi - 7.03 kg/cm2
3.25 mph - 5.2 km/hr
45%

14 ft 5 in - 4.39 m
8 ft - 2.44 m

22 ft 6 in - 6.86 m
19 ft 4in - 5.89 m

Download Brochure

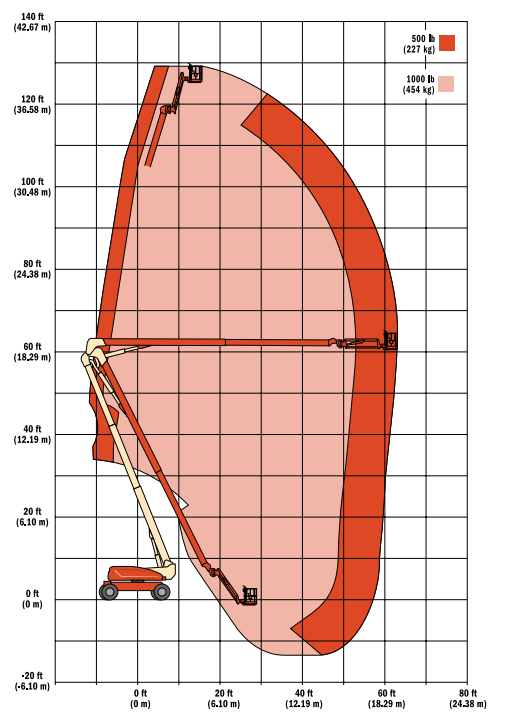

Reach Diagram

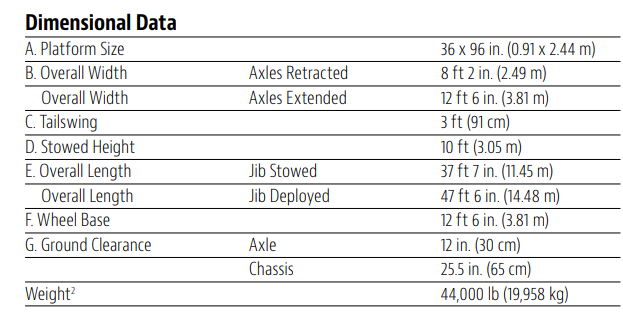

Dimensions
