Magni RTH 5.18 Smart

The MAGNI 5.18 Smart Series

The RTH 5.18 Smart is a compact and multi-functional machine, compatible with a huge range of accessories. The RFID system provides automatic accessory recognition and can automatically create the relative load charts. The 5.18 Smart telescopic handler can meet a wide range of applications in construction and industry. It is equipped with pivoting stabilizers with a large contact surface and a load monitoring system to protect against the risk of machine overload and offers three steering modes.

Contact us at 1-855-955-LIFT (5438) or send us an email to sales@stanmoreequipment.com

Features

Stabilizers: pivoting
Lifting capacity: 11.020,91 lb
Capacity at maximum height: 6,613.87 lb
Lifting height: 57.61 ft
Outreach: 46.78 ft
Engine: Deutz TCD 3.6 L4 - stage IV
Nominal power: 100 kW - 134 hp
Number of gears: 2/2
Hydraulic system: Load Sensing 350 bar
Length: 263.39 In
Width: 98.43 In
Ground Clearance: 12.95 In
Empty weight: 34,458.25 lb
Speed of movement: 24.85 Mph
Rotation: 360 °
Air conditioning as standard: Yes
Automatic accessory recognition: Yes

Highlights

Maximum lifting height: 57.61 ft
Maximum reach: 46.78 ft
Electronically controlled hydrostatic transmission
Automatic leveling device
Pivoting stabilizers

Specifications

Performance

Rotation
Rated Capacity
Maximum Lift Height
Load at Max Height
Maximum Forward Reach
Load at Max Reach
Top Travel Speed (4 Speed)
Outside Turning Radius
Operating Weight

360°
11,020 lbs
57.6 ft
6,620 lbs
46.78 ft
2,210 lbs
40 kph
231 in
34,460 lbs

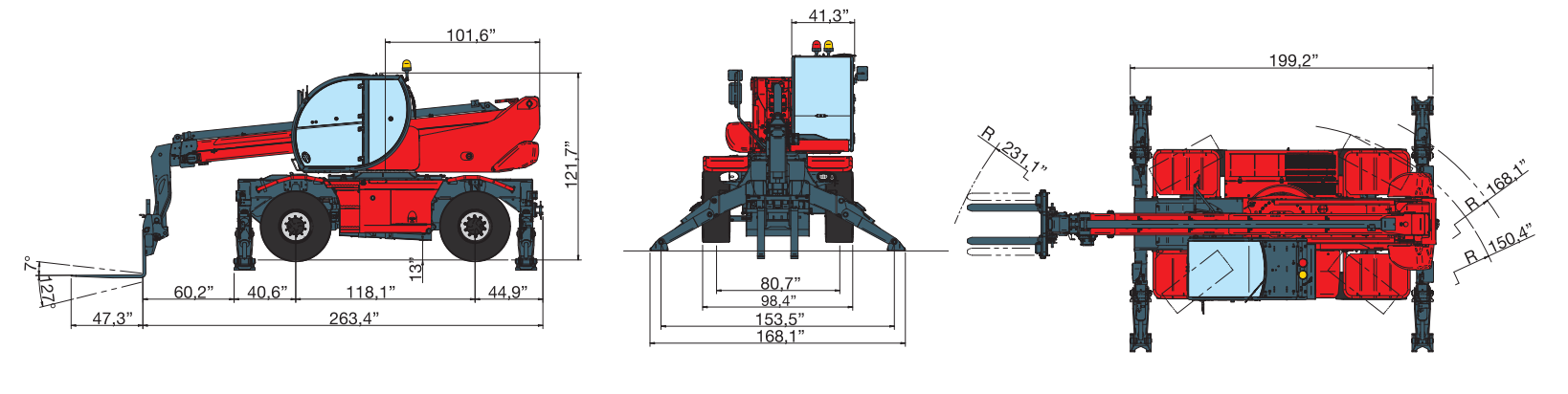

Click to enlarge the image

METRIC Brochure IMPERIAL Brochure

Click to enlarge the images
